LG2004 T-LIFT Stairlift with tracks
LG2004 T-LIFT Stairlift with tracks

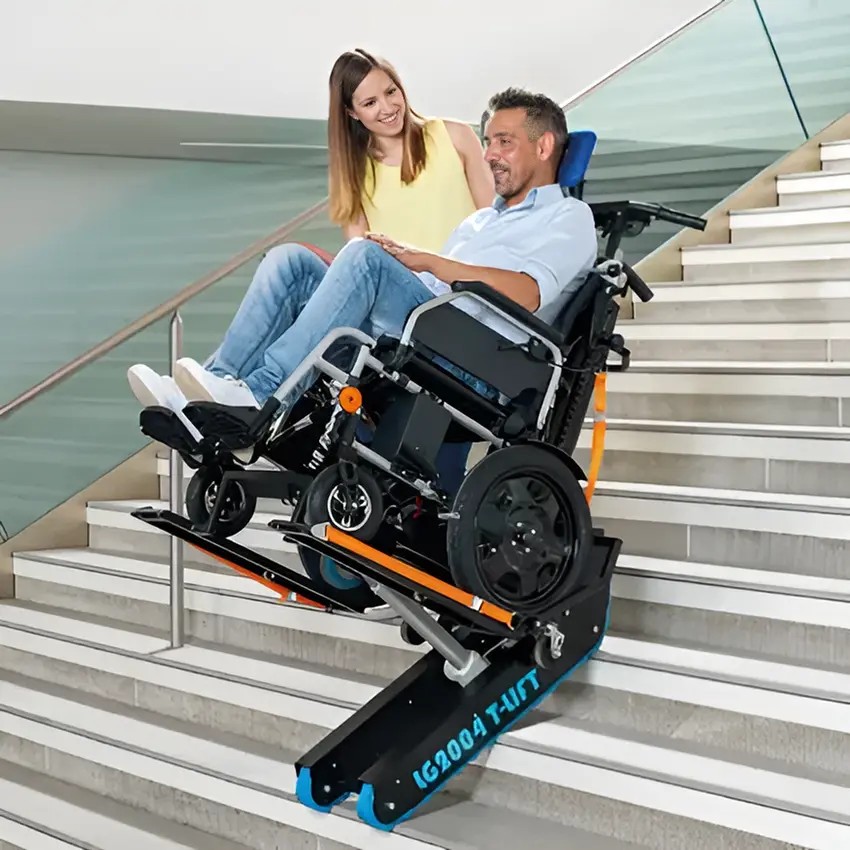

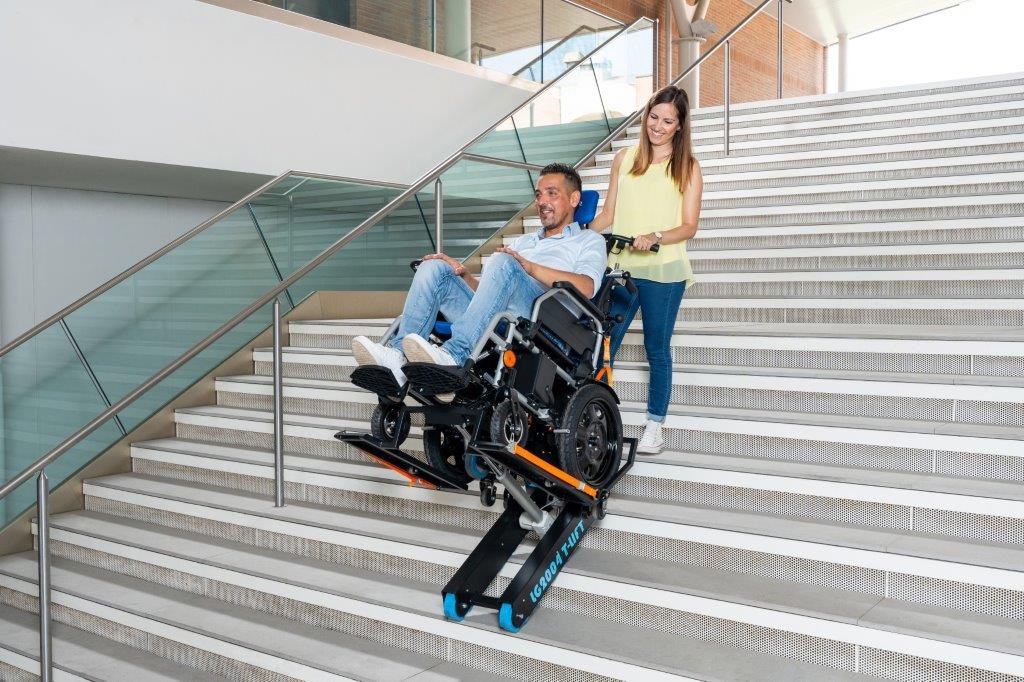

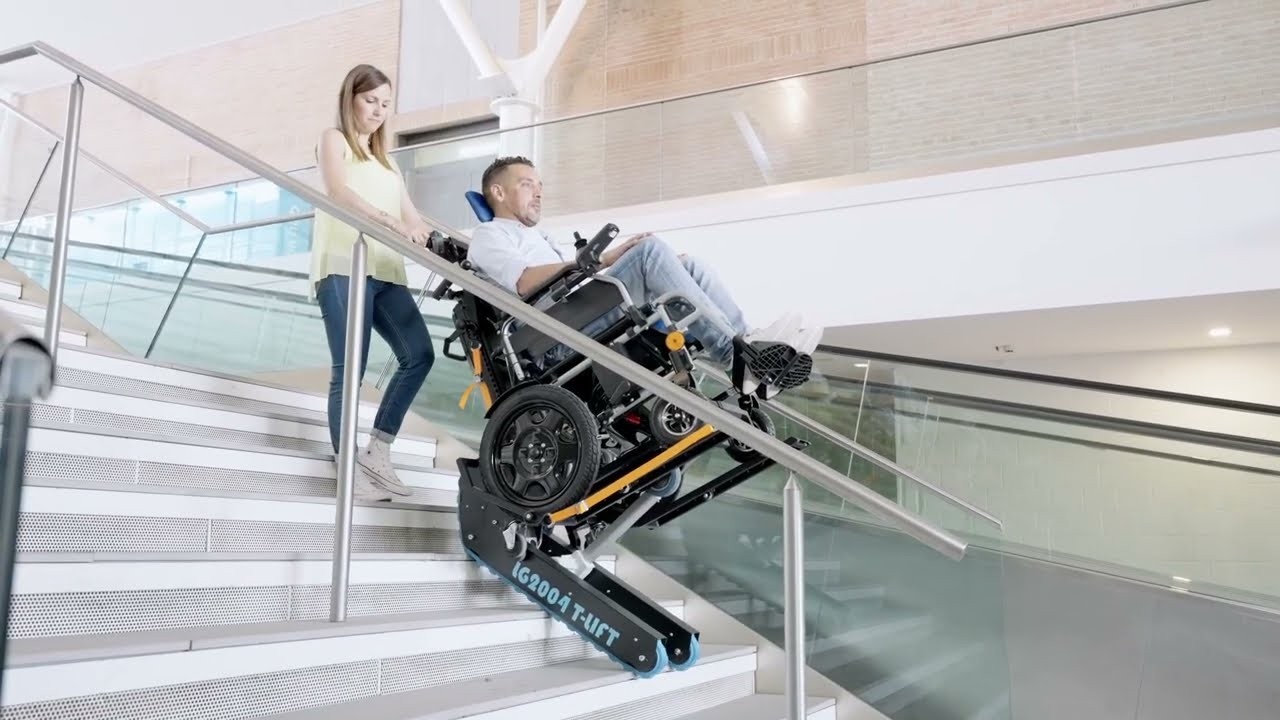

The Stairlift LG2004 T-LIFT is a stairlift designed to offer maximum safety and adapt to different wheelchairs, the T-LIFT stairlift offers a mobility experience tailored to each user, overcoming architectural barriers with comfort and safety.
The new Antano Group stairlift LG2004 T-LIFT is equipped with different types of ramps adaptable to each wheelchair model. Thanks to the intuitive LED display, the operator maneuvers the stairlift effortlessly, showing the recommended movements for a safe ascent and descent. In addition, the possibility to adjust the inclination up to 55 degrees and adapt it to the user's type of staircase and wheelchair ensures an upright and comfortable position during use.
With an exceptional load capacity of up to 300 kg, the Antano Group stairlift can overcome any architectural barrier with confidence and maximum safety.

With the LG2004 T-LIFT, you:
- Adapt any type of wheelchair thanks to interchangeable ramps and platforms.
- Adjust the tilt up to 55° for optimal positioning on stairs
- Rely on the intuitive LED display to guide your every move
- Lift up to 300 kg with complete confidence, ensuring safe transport for users of all sizes

Comfort and Safety - Tilt adjustment LG2004 T-LIFT
The tilting of the loading surface up to 55° by means of an electric actuator not only avoids the effort of leaning back before boarding the ladder, but also allows the user an upright, safe and comfortable position at all times.
Installation and Integration
The LG2004 T-Lift stairlift is designed to offer flexibility and easy integration into a wide range of buildings. Its compact design allows for use in confined spaces where conventional stairlifts are not feasible, while its rail system adapts to straight or gently curved staircases. Installation is quick and requires no major structural modifications, making it a practical solution for listed buildings, temporary spaces, or facilities requiring a rapid accessibility option.
It is particularly suitable for environments such as:
- Event halls with temporary accessibility requirements
- Public buildings with architectural limitations
- Schools and universities seeking rapid compliance with accessibility legislation
- Hospitals and nursing homes with bariatric and electric wheelchair users

An investment for the future
Investing in the LG2004 T-Lift stairlift not only solves immediate accessibility issues but also future-proofs your building in the face of changing demographics and evolving legislation. With a growing emphasis on universal accessibility and dignified mobility, the LG2004 T-Lift stairlift enables organizations to meet modern expectations with a practical, user-centric solution that works in real-life situations.
Applications:
Permanent or temporary accessibility solutions for public spaces
Emergency evacuation for people with limited mobility
Ideal for theaters, stadiums, historic buildings, schools, offices, and transportation hubs
Why choose the LG2004 T-Lift stairlift?
- Universal compatibility with different wheelchair models
- High load capacity of 300 kg: ideal for electric wheelchairs and bariatric users
- Smooth, LED-guided controls for safe operation
- Compact, foldable design for easy storage when not in use
- Tilt platform for a natural posture and greater comfort
- Sturdy rail system for safe travel on various types of stairs
- Complies with EU safety regulations for peace of mind in public environments
Whether permanently installed or used as a mobile solution, the LG2004 T-Lift is an excellent choice for any organization looking to improve accessibility and meet modern inclusion standards. Designed for safety, ease of use, and long-term performance, it provides users with independence and gives operators full control and confidence with every move.
Documents
Our physical store is located at Calle Cavanilles 7, 28007 Madrid.
Secure SSL Purchase (+info)
Returns: 15 days.
Need any assistance? Contact us +34 915701682
Accessories
Details
Total weight (kg): 79 kg
Weight of machine body (kg): 70 kg
Weight of accessories (kg): 9 kg
Minimum dimensions (cm): 66 x 106 x 110
Maximum dimensions (cm): 83 x 106 x 150
Maximum step height (cm): 21
Power supply batteries (V): No. 2 - 12V - 12Ah
Motor power (W): 500
Battery charger consumption (W): 80
Battery charger power supply (V): 100-240
Maximum transportable weight (kg): 300
Travel in autonomy(steps): 850 (with 150 kg load) - 520 (with 350 kg load)
Autonomy with reserve indicator (steps): 60
Minimum stair width measurement(cm): 70
Minimum maneuvering space in L landing (cm: 115 X 115
Minimum maneuvering space in U landing (cm): 115 X 230
Maximum inclination: 45º
Temperature of use: 0º / 40º
Storage temperature with packaging (dry environment): -10º / 50º
Maximum speed: 13 steps per minute
Packaging dimensions (mm): 60 x 115 x 40
* Data provided by the manufacturer.
Warranty: 3 years and 6 months on battery
