When it comes to folding, Atto is the most compact mobility scooter in the world. Nevertheless, when open and ready to drive, Atto is the largest and most comfortable in its category.
METRIC (cm) Height Length Width
Trolley mode 72 39 42
Drive mode 90 120 56
Part Kg Lbs
Front half 12.0 26.4
Rear half 16.2 35.7
Assembled * 28.2 62.2
Battery 1.85 4.1
* Without battery
When folded, ATTO is as small as a carry-on trolley you can take with you on flights, it is also very large and comfortable when opened for driving. 10 seconds of simple operation to open and close, and 10 more seconds to split ATTO in two lightweight parts.
Updated technology and design
ATTO design, look, technology, all modern and updated, fits people with no boarders, no barriers, goes anywhere other go, stops only where you want to stop. ATTO was made for people who believe they have the right to BE LIKE EVERYONE ELSE, travel with no hesitation, no complicated planning and limitations.
Maximum user weight:
Although Atto’s seat is thin and stylish, it was designed to provide comfort and safety and can be adjusted according to the user’s preferences. The seat mechanism can be locked at one of three fixed heights, ranging from 560 to 610 mm (22 to 24 inches) from the ground.
Atto’s minimum ground clearance is as follows:
Metric 10 cm
Atto uses a powerful, yet compact advanced-technology lightweight 48 Volts lithium-ion battery. Weighing only 2 kg (4.4 lbs), the battery allows for more than 16 km (10 miles) of continuous driving while requiring only 4 hours (on average) to fully charge. As for charging options, you can charge Atto on-board and off-board, meaning that you can, but do not have to, take the battery off the vehicle in order to charge it. Removing the battery is as easy as pressing a button. Reinstalling the battery is as easy as putting it back in place.
While most countries allow a maximum speed of 6-7 km/h (about 4 mph), Atto can go up to 10 km/h (about 6 mph) depending on local regulations. Once the maximum speed has been set by a technician, it is very easy to set your current maximum speed with one of the presets by simply clicking a button and receiving feedback from Atto’s clear view display.
To allow smooth and continues drive over many years and large distances, we developed a unique fully custom brushless permanent magnet DC motor combining solid core and powerful gear along with robust braking mechanism. Via sophisticated software algorithms the motor unitizes modern reverse charging techniques for deceleration and stopping providing smooth driving experience.
Atto’s charger is a small yet smart and powerful charger with the ability to connect to any electrical grid rating 110VAC – 240VAC.
Atto’s front and rear halves can be easily separated in only a few seconds by operating a knob and two handles. The same technique applies to putting the two halves back together. This is very useful when storing Atto in the trunk or in an airplane’s overhead bins.
One of the most common questions people ask us is how much time it takes to fold and unfold Atto. We tested this question and got the following results: It takes less time to fold (or unfold) Atto then it takes to read this paragraph! Only 12 seconds are required.

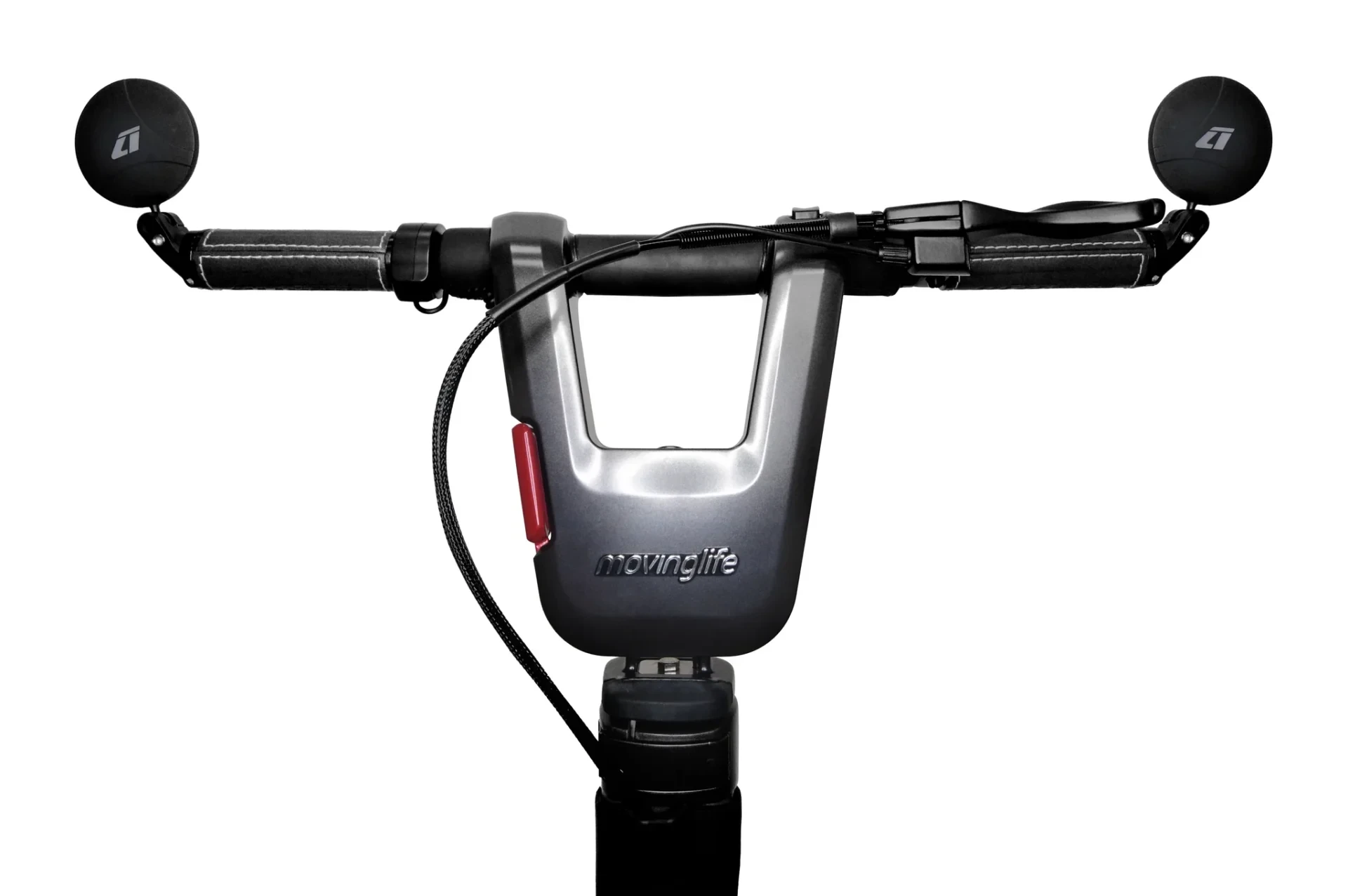

There are three mechanisms that can be adjusted to provide maximum customization of the tiller. These include (a) the handlebar height; (b) the steering rod angle; and (c) the handlebar angle. These three adjustments combined ensure the user’s comfort and safety.
Preliminary tests show a minimum height of 150 cm (5 Feet) is required for safe driving. This is NOT a formal recommendation, we have not concluded the tests, and you should check with your medical advisor.
Atto was designed and tested according to strict water resistance standard IP54 requiring the equipment to be water splashed from multiple angles, for a long period of time and at high pressure. After taking a 50 litters shower Atto continued to work with zero malfunctions which guarantees resistance to normal outdoor conditions. Nevertheless, we recommend storing Atto indoor to ensure maximal lifetime of high performance and for safety reasons use it only under dry weather conditions.
There are many accessories a user can add to Atto and we will discuss these in the future. At this time we will mention the ability to charge your mobile phone directly from the handlebar when it is mounted on a designated, easy-to-use smartphone holder.
Atto’s prototypes are already flying all over the world with their users, and in 95 percent of the flights, it flew in the passengers cabin and was stored either in the overhead compartment or in the crew’s closet.
LENGTH-WIDTH-HEIGHT (Trolley mode): 39cm-42cm-72cm
LENGTH-WIDTH-HEIGHT (Drive mode): 120cm-56cm-90cm
BATTERIES: 1 X 48 Volts lithium-ion
ENGINE: Custom brushless permanent magnet DC
MAXIMUM SPEED: 10 km/h
TRAVEL RANGE: 16 km
SCOOTER WEIGHT: 28,2 (battery weights only 1,8kg)
WEIGHT MAX. SUPPORTED: 100kg
WHEEL TYPE: solid
GROUND CLEARANCE: 10cm
TWO-YEAR LIMITED WARRANTY (applicable to units purchased as of December 1, 2018): Structural frame components, including: mobility scooter chassis, steering mechanism, seat mechanism, rear wheels extensions, welds on entire products.
TWO-YEAR LIMITED WARRANTY: All electronic parts, including controllers and battery chargers. Servicing to the controller or battery charger must be carried out by an authorized Moving Life dealer. Any attempt to open or dismantle these items renders the guarantee void on that item.
TWO-YEAR LIMITED WARRANTY (applicable to units purchased as of December 1, 2018): Drivetrain, including: motor, front wheel fork and brake.
ONE-YEAR LIMITED WARRANTY: Batteries are covered by a one year warranty from the original manufacturer. Gradual deterioration in battery performance due to not following usage instructions specified in owner’s manual or worn out through heavy use is not covered.
Tires and tire tubes
Repairs and/or modifications made to any part of the product or accessories without specific and prior written consent from Moving Life
Circumstances beyond the control of Moving Life
Damage caused by: battery malfunction, abuse, misuse, accident, or negligence, improper operation, maintenance, or storage, commercial use or use other than normal.
Labor, service calls, shipping, and other charges incurred for repair of the product If the serial number has been removed or defaced
Contact us to see different optional accessories for this scooter
21% VAT and transportation included
Reduced 4% VAT will be applied to customers who submit disability certificate of 33% degree or higher
